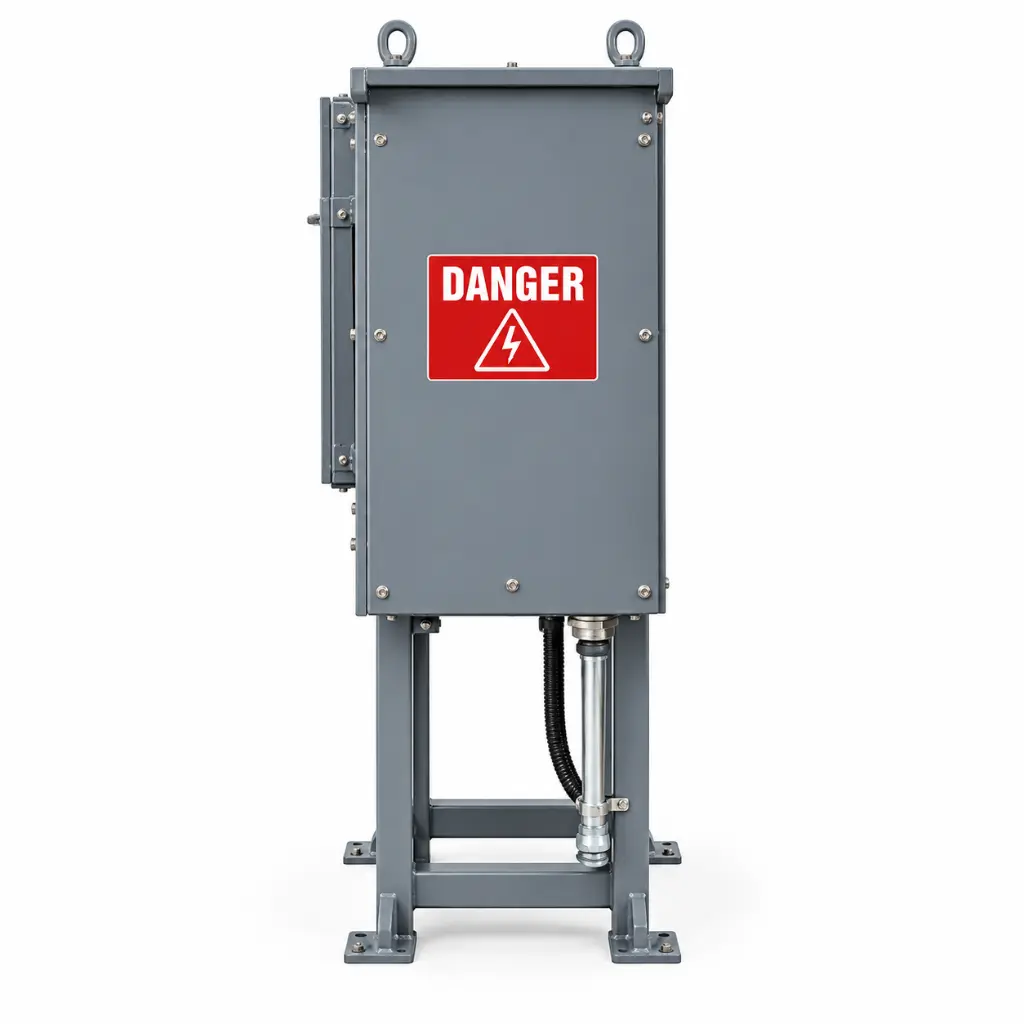

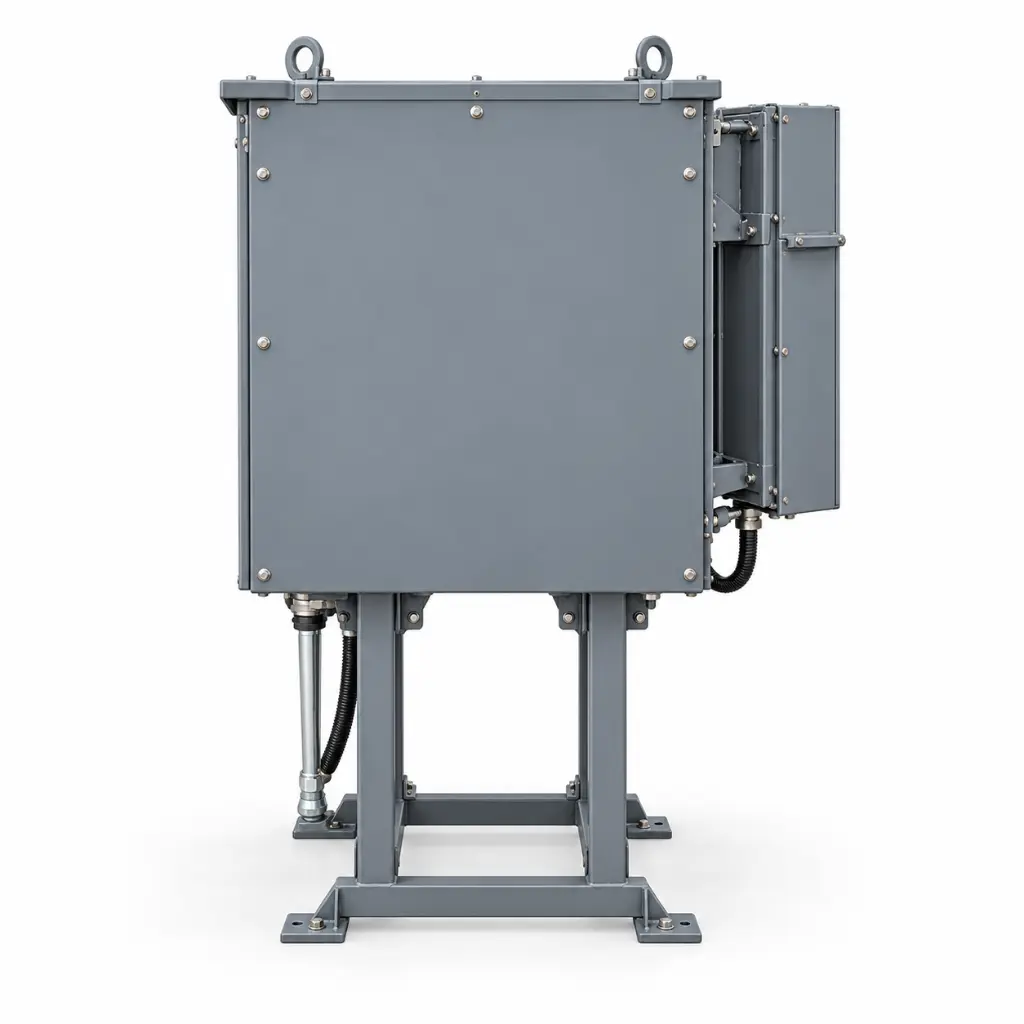

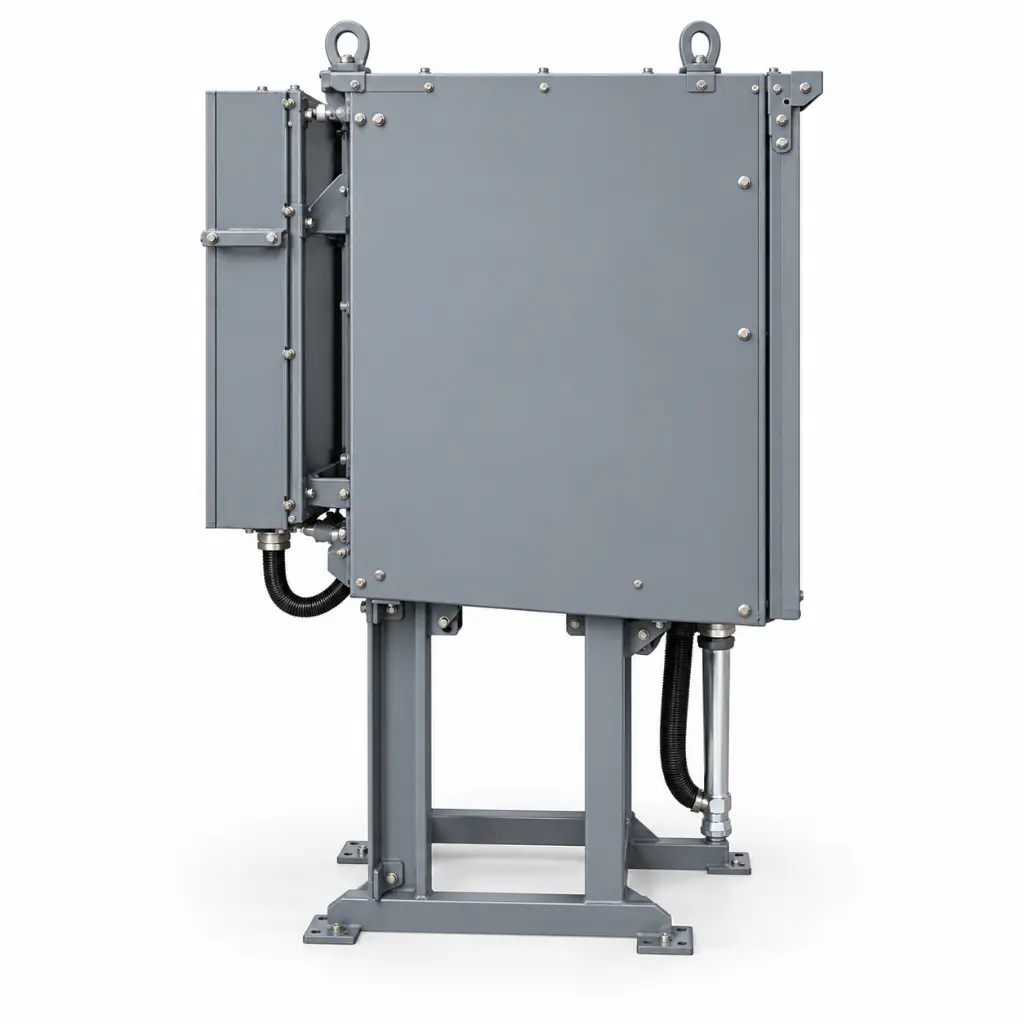

11kV, 630A, 21kA/3Sec Non-Extensible Outdoor Ring Main Unit (RMU)
11kV, 630A, 21kA/3Sec Non-Extensible, Outdoor Type Ring Main Unit Compact switchgear consisting of One Nos. 630A fixed Manual, Vacuum Circuit Breaker in SF6 insulated stainless steel enclosure with microprocessor based known brand make numerical over current and earth fault relay (IDMTL + Inst.), LV class Protection Ring Core CT for protection and arrangement for connecting incoming cable & outgoing cable.
| Degree Of Protection | IP54 |
| No. Of Poles | 3 POLE |
| Usage/Application | Outdoor |
| Brand | Known Brand |
| Material | COPPER BUS BAR |
| Rated Short Time Current | 21kA / 3 Sec |
| Color | RAL 7035 |
| Size/Dimension | 1210 x 755 x 1540 mm |
| Finishing | IEC 62271-200 |
| Rated Insulation Level | 28/75 KV |
9,450.00 AED
9,450.00 AED
(Tax included)
