Unitized Substation (USS) is a fully integrated

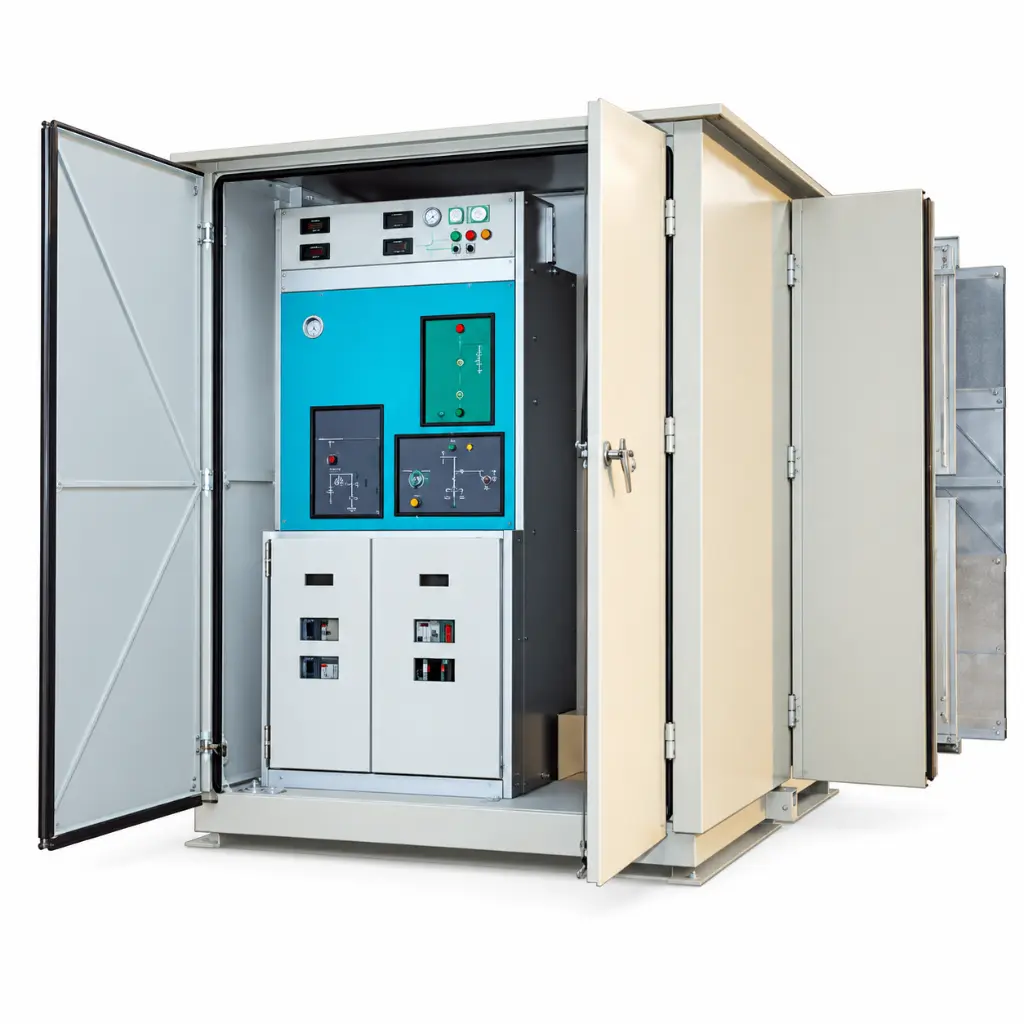

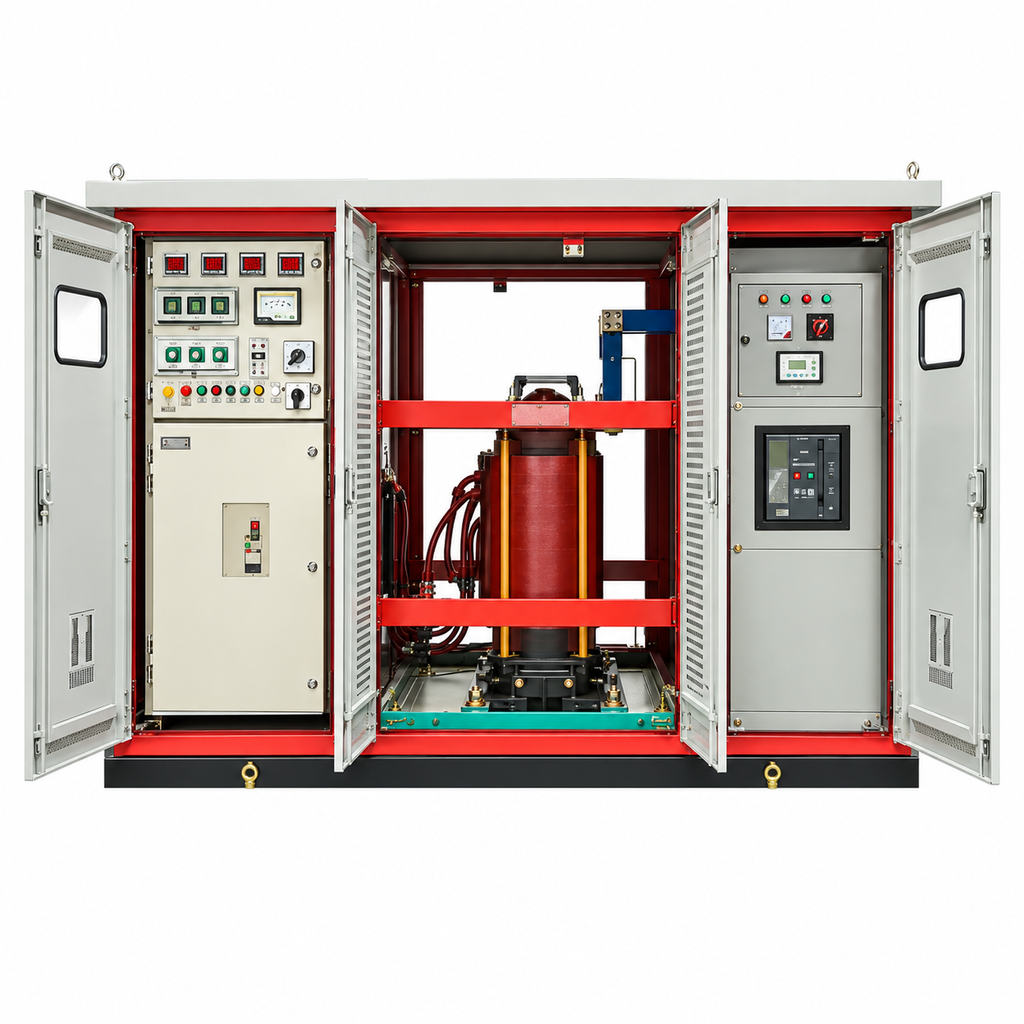

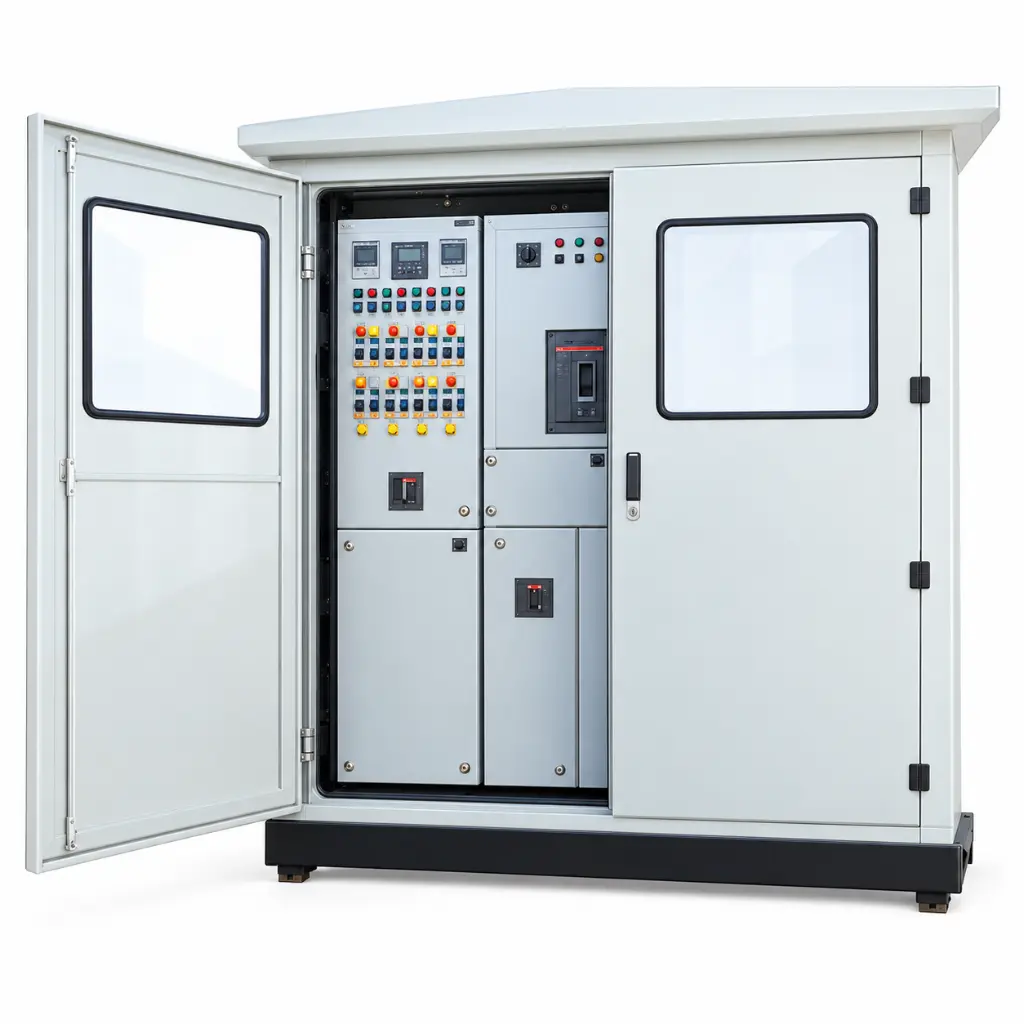

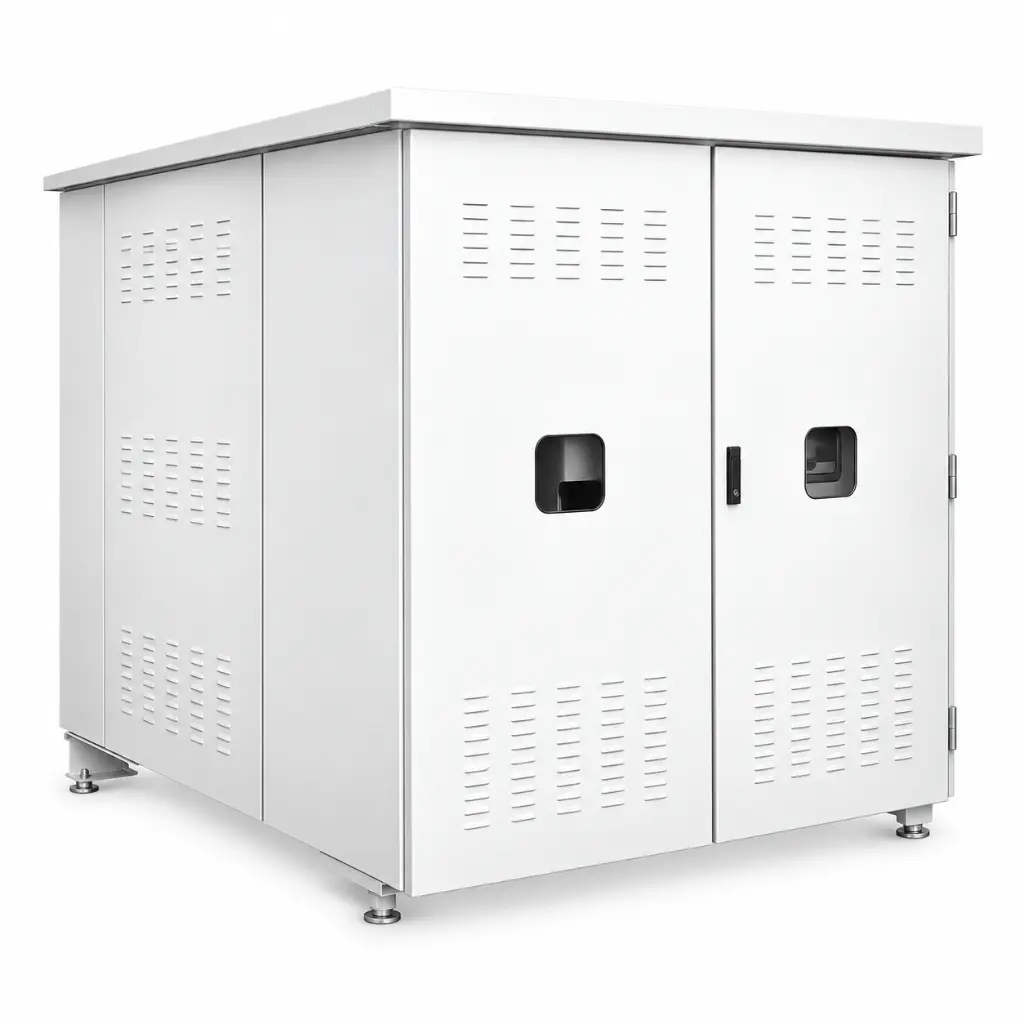

A Unitized Substation (USS) is a fully integrated, factory-assembled power distribution unit that combines medium voltage (MV) switchgear, a distribution transformer, and a low voltage (LV) switchboard into a single compact enclosure. Designed for rapid deployment and minimal on-site installation work, USS units are pre-wired, pre-tested, and delivered as a complete ready-to-energize package ? significantly reducing project commissioning time and civil construction costs. The MV compartment houses vacuum circuit breakers or ring main units for upstream protection and switching, while the transformer section steps down voltage typically from 11 kV or 33 kV to 415 V for end-use distribution. The LV compartment incorporates ACBs, MCCBs, bus bars, and metering equipment for load management and protection. Built to IEC 62271-202 standards, USS offers enhanced personnel safety, arc-fault protection, and IP-rated weatherproof enclosures suitable for indoor and outdoor installations. Widely adopted in industrial plants, commercial complexes, renewable energy projects, and utility networks, Unitized Substations deliver a reliable, space-efficient, and cost-effective alternative to conventional open-type substation configurations
